自锁式尼龙扎带 |
UPTIME : 2009/12/23 11:22:54 / CLICKS :2601
|
|
|
|
|
|
 |

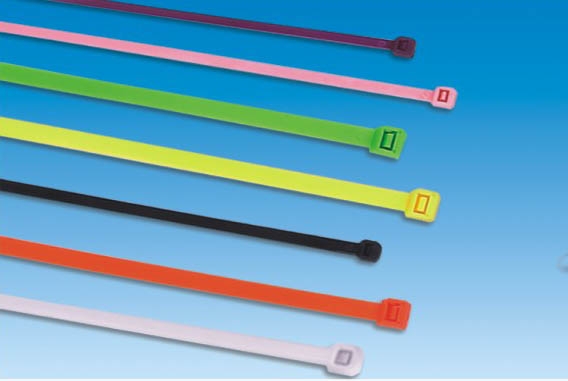

自锁式尼龙扎带 | |
|
|
 |
产品概述 | |
|
|
·财质：采用UL认可之尼龙66料制成，防火等级94V-2，耐酸、耐蚀、绝缘性良好，不易老化、承受力强。
·操作温度：-40℃to85℃
·颜色：标准颜色为本色（白色），另有抗紫外线索之际黑色，特殊颜色欢迎订做。
颜色：标准颜色为本色（白色），另有抗紫外线索之际黑色，特殊颜色欢迎订做。
|
| 编号 |
长 |
宽(mm) |
捆扎范围
(mm) |
拉力 |
| INCH |
MM |
LBS |
KGS |
| HF-3×60 |
2 3/8" |
60 |
2.5 |
2-11 |
18 |
8 |
| -HF3×80 |
3 3/16" |
80 |
2.5 |
2-16 |
18 |
8 |
| HF-3×90 |
2 5/8" |
90 |
2.5 |
2-18 |
18 |
8 |
| HF-3×100 |
4" |
100 |
2.5 |
2-22 |
18 |
8 |
| HF-3×120 |
4 3/4" |
120 |
2.5 |
2-30 |
18 |
8 |
| HF-3×140 |
5 1/2" |
140 |
2.5 |
2-33 |
18 |
8 |
| HF-3×150 |
6" |
150 |
2.5 |
2-35 |
18 |
8 |
| HF-3×160 |
6 1/4" |
160 |
2.5 |
2-40 |
18 |
8 |
| HF-3×200 |
8" |
200 |
2.5 |
2-50 |
18 |
8 |
| HF-4×100 |
4" |
100 |
3.5 |
2-22 |
40 |
18 |
| HF-4×120 |
4 3/4" |
120 |
3.5 |
3-30 |
40 |
18 |
| HF-4×140 |
5 1/2" |
140 |
3.5 |
3-33 |
40 |
18 |
| HF-4×150 |
6" |
150 |
3.5 |
3-35 |
40 |
18 |
| HF-4×180 |
7" |
180 |
3.5 |
3-42 |
40 |
18 |
| HF-4×200 |
8" |
200 |
3.5 |
3-50 |
40 |
18 |
| HF-4×220 |
8 5/8" |
220 |
3.5 |
3-58 |
40 |
18 |
| HF-4×250 |
10" |
250 |
3.5 |
3-65 |
40 |
18 |
| HF-4×280 |
11" |
280 |
3.5 |
3-70 |
40 |
18 |
| HF-4×300 |
11 5/8" |
300 |
3.5 |
3-80 |
40 |
18 |
| HF-4×370 |
14 1/2" |
370 |
3.5 |
3-102 |
40 |
18 |
| HF-5×120 |
4 3/4" |
120 |
4.5 |
3-24 |
50 |
22 |
| HF-5×180 |
7" |
180 |
4.5 |
3-42 |
50 |
22 |
| HF-5×190 |
7 1/2" |
190 |
4.5 |
3-46 |
50 |
22 |
| HF-5×200 |
8" |
200 |
4.5 |
3-50 |
50 |
22 |
| HF-5×250 |
10" |
250 |
4.5 |
3-65 |
50 |
22 |
| HF-5×280 |
11" |
280 |
4.8 |
3-70 |
50 |
22 |
| HF-5×300 |
7 8/5" |
300 |
4.5 |
3-82 |
50 |
22 |
| HF-5X350 |
13 3/4" |
350 |
4.5 |
3-90 |
50 |
22 |
| HF-5×380 |
15" |
380 |
4.7 |
3-102 |
50 |
22 |
| HF-5×400 |
15 3/4" |
400 |
4.7 |
3-105 |
50 |
22 |
| HF-5×430 |
17" |
430 |
4.7 |
3-110 |
50 |
22 |
| HF-5×450 |
17 3/4" |
450 |
4.7 |
3-130 |
50 |
22 |
| HF-5×500 |
19 11/16" |
500 |
4.7 |
3-150 |
50 |
22 |
| HF-8×150 |
6" |
150 |
7.0 |
3-33 |
85 |
38 |
| HF-8×180 |
7" |
180 |
6.8 |
3-42 |
85 |
38 |
| HF-8×200 |
8" |
200 |
6.8 |
3-50 |
85 |
38 |
| HF-8×250 |
10" |
250 |
6.8 |
4-63 |
85 |
38 |
| HF-8×270 |
10 5/8" |
270 |
6.0 |
4-65 |
65 |
30 |
| HF-8×300 |
11 5/8" |
300 |
7.5 |
4-82 |
85 |
38 |
| HF-8×350 |
13 3/4" |
350 |
7.5 |
4-90 |
120 |
55 |
| HF-8×370 |
14 1/4" |
370 |
7.5 |
4-98 |
85 |
38 |
| HF-8×400 |
15 3/4" |
400 |
7.5 |
4-105 |
120 |
55 |
| HF-8×450 |
17 3/4" |
450 |
7.5 |
4-118 |
120 |
55 |
| HF-8×500 |
19 11/16" |
500 |
7.5 |
4-450 |
120 |
55 |
| HF-8×750 |
29 9/16" |
750 |
7.5 |
4-220 |
120 |
55 |
| HF-9×450 |
17 3/4" |
450 |
9.0 |
4-118 |
175 |
80 |
| HF-9×530 |
21 1/16" |
530 |
9.0 |
8-155 |
175 |
80 |
| HF-9×550 |
25 9/16" |
550 |
9.0 |
8-160 |
175 |
80 |
| HF-9×650 |
27 1/2" |
650 |
9.0 |
8-190 |
175 |
80 |
| HF-9×700 |
30" |
700 |
9.0 |
10-205 |
175 |
80 |
| HF-9×760 |
36 1/4" |
760 |
9.0 |
10-225 |
175 |
80 |
| HF-9×920 |
29 9/16" |
920 |
9.0 |
10-265 |
175 |
80 |
| HF-9×1020 |
29 9/16" |
1020 |
9.0 |
10-295 |
175 |
80 |
| HF-9×1150 |
29 9/16" |
1150 |
9.0 |
10-310 |
175 |
80 |
| HF-9×1210 |
29 9/16" |
1210 |
9.0 |
10-340 |
175 |
80 |
| HF-9×1350 |
29 9/16" |
1350 |
9.0 |
10-380 |
175 |
80 |
| HF-10×450 |
17 3/4" |
450 |
12.7 |
10-125 |
250 |
114 |
| HF-10×500 |
19 11/16" |
500 |
12.7 |
12-150 |
250 |
114 |
| HF-12×300 |
11 5/8" |
300 |
12.7 |
12-105 |
250 |
114 |
| HF-12×400 |
15 3/4" |
400 |
12.7 |
12-155 |
250 |
114 |
| HF-12×540 |
21 1/4" |
540 |
12.7 |
14-190 |
250 |
114 |
| HF-12×650 |
25 9/16" |
650 |
12.0 |
14-190 |
250 |
114 |
| HF-12×750 |
29 9/16" |
750 |
12.0 |
10-220 |
250 |
114 |
| HF-12×780 |
30 3/4" |
780 |
12.7 |
14-230 |
250 |
114 |
| HF-13×540 |
21 1/4" |
540 |
13.0 |
14-155 |
250 |
114 | | | |
|
| | | |
