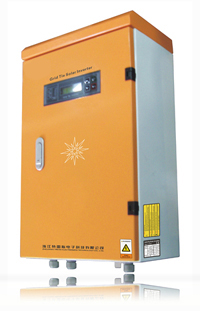

8KW grid tie solar inverter
UPTIME : 2010/7/31 16:29:11 / CLICKS :1520


Summarize

The grid connected inverter can be used with a connection to grid or power lines. This type supplies the loading appliances with electric power produced by photovoltaic systems.

The advantage of grid-type is not to worry any power waste, because by connecting inverter to grid, it can save any surplus electricity.



Features

*Wide DC input voltage range

*DSP controller

*High efficiency by using advanced IGBT and IPM

*MPPT(Maximum power point tracking) technology

*Transformer less, High efficiency

*In accordance with international standards

*Quick and easy installation

*Operation parameters can be adjusted via LCD and keys

*The perfect protection function

*Designed to suitable for critical grid environment



Technical Data

Model

TLS-ZB 8000W

DC Input

MPPT Voltage Range

DC100  500V

Rated DC Voltage

360V

Control System

MPPT

AC Output

Output Power

8000W

Rate voltage

AC220

Voltage range

AC 185V  264V (1 phase)

Normal Grid Frequency

50/60HzGrid frequency

Phases

1 phase 2 wire

Power Factor

 0.95

Current THD

At rated power and in the sine wave <5%

Control System

PWM

Anti-islanding

≤0.5 sec

Total Max.Current

36.4A

Max. Efficiency

97%

Euro Efficiency

96.4%

Structure

Protection Class

IP20

Cooling  system

Natural cooling

Noise

 50dB

Data Interfaces

External RS232C/RS485

Display

LCD

Packing Dimensions

(W*H*D)

700*450*540mm

Net weight

30 kgs

Gross weight

35kgs

Protection

Inverter

Input over voltage, output short circuit, overheat, output DC component.

Grid

Anti-islandin g, over/under voltage of grid, over/under

frequency of grid.

Environment

Environment

No corrosion gas, flammable gas, oil mist, dust etc.

Operation temperature

-10  ~40   50

Stored temperature

-20   65

Relative humidity

0~100% (Do not wet with dew)
