· Material：Nylon 66 94v-2 agreed by UL.
· Usage： put cable in, fix by screw.

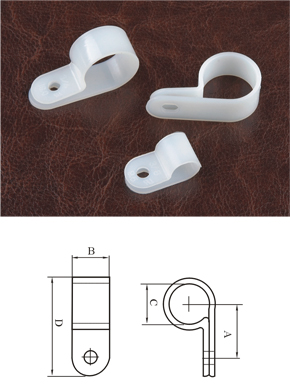

| ITEM.NO. |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
| MM |
INCH |
| CHS-1/8R |
9.5 |
9.6 |
3.2 |
1/8″ |
19.8 |
| CHS-3/16R |
9.6 |
9.6 |
4.8 |
3/16″ |
19.8 |
| CHS-1/4R |
12.0 |
10.0 |
6.35 |
1/4″ |
22.0 |
| CHS-5/16R |
12.0 |
10.0 |
7.9 |
5/16″ |
22.0 |
| CHS-3/8R |
12.5 |
12.0 |
9.5 |
3/8″ |
24.0 |
| CHS-1/2R |
15.2 |
12.0 |
12.7 |
1/2″ |
31.0 |
| CHS-5/8R |
18.2 |
12.0 |
15.8 |
5/8″ |
34.3 |
| CHS-3/4R |
18.2 |
12.0 |
19.4 |
3/4″ |
35.0 |
| CHS-1R |
22.0 |
12.0 |
25.4 |
1″ |
43.0 |
| CHS-17/16R |
24.0 |
12.0 |
27.5 |
17/16″ |
50.0 |
| CHS-5/4R |
26.0 |
12.0 |
31.8 |
1 1/4″ |
46.2 |
| CHS-3/2R |
30.0 |
12.0 |
36.7 |
1 1/2″ |
50.0 | |
