MG Cable Gland
UPTIME : 2010-4-5 18:45:39 / CLICKS :1643

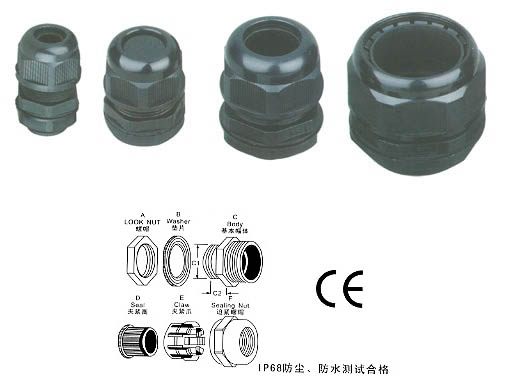

Nylon cable glands(MG)

· Threaded entry:Metric
· Color :black and grey
· Working temperature:-40℃-100℃,the item can also endure 120℃ instantly
· protection:IP68
· Standard:IEC698

ITEM.NO. Threaded entry metric(mm) Cable rangeФ(mm) D1 D2 Panel mounting hole(mm) L1 L2 A(mm)
MG-12 M12×1.25 7.6-4.6 12 M16×1.5 12.5 8.5 16 19
MG-16 M16×1.5 10-6 16 M20×1.5 16.5 15 19.5 24
MG-20 M20×1.5 14-9 20 M25×1.5 20.5 15 21.5 30
MG-25 M25×1.5 18-13 25 M31×2 25.5 15 24.5 36
MG-32 M32×1.5 25-18 32 M38×2 33 15 27.5 46
MG-40 M40×1.5 30-24 40 M46×2 41 20 31 54
MG-50 M50×1.5 39-30 50 M58×2 51 23 37 67
MG-63 M63×1.5 48.5-40 63 M72×2 64 24 42 81.5
