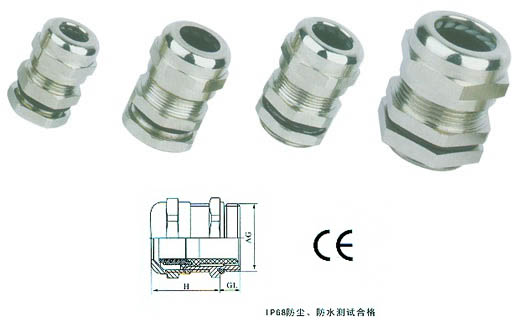

Metal Cable Gland (NPT Type)
Material: brass with nickel plated
Clamping Element :made of PA nylon
Protection degree:IP68(Rotate position)
Ambient Temperature:-40℃ to +100℃ ,short time to+120℃
IP68 dust-proof .water proof testing qualified
|
Thread |
|
GL
mm |
H
mm |
|
AG
mm |
|
NPT3/8″ |
4-8 |
15 |
20 |
17/19 |
17 |
|
NPT3/8″ |
2-6 |
15 |
20 |
17/19 |
17 |
|
NPT1/2″ |
|
13 |
22 |
22/24 |
21.2 |
|
NPT1/2″ |
5-9 |
13 |
22 |
22/24 |
21.2 |
|
NPT3/4″ |
13-18 |
15 |
25 |
30/33 |
26.2 |
|
NPT3/4″ |
9-16 |
15 |
25 |
30/33 |
26.2 |
|
NPT1″ |
18-25 |
16 |
29 |
40/41 |
33.3 |
|
NPT1″ |
13-20 |
16 |
29 |
40/41 |
33.3 |
|
NPT11/4″ |
18-25 |
18 |
29 |
40/50 |
42 |
|
NPT11/4″ |
18-25 |
18 |
29 |
40/50 |
42 |
|
NPT11/2″ |
22-32 |
15 |
35 |
50/57 |
48 |
|
NPT11/2″ |
20-26 |
15 |
35 |
50/57 |
48 | |
