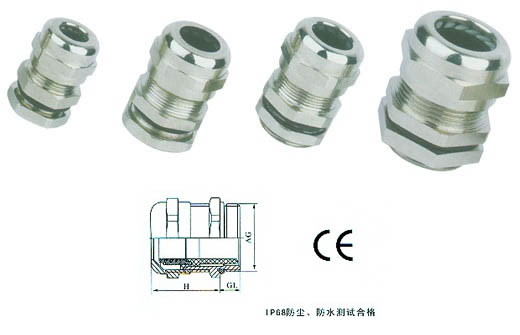

Metal Cable Gland (M Type)
Material: brass with nickel plated
Clamping Element :made of PA nylon
Protection degree:IP68(Rotate position)
Ambient Temperature:-40℃ to +100℃ ,short time to+120℃ ℃
IP68 dust-proof .water proof testing qualified
|
Thread |
|
GL
mm |
H
mm |
|
AG
mm |
|
M12×1.5 |
3-6.5 |
5 |
19 |
14 |
12 |
|
M12×1.5 |
2-5 |
5 |
19 |
14 |
12 |
|
M16×1.5 |
|
6 |
20 |
17 |
16 |
|
M16×1.5 |
2-6 |
6 |
20 |
17 |
16 |
|
M16×1.5 |
5-10 |
6 |
21 |
20 |
16 |
|
M16×1.5 |
3-7 |
6 |
21 |
20 |
16 |
|
M18×1.5 |
5-10 |
6 |
21 |
20 |
18 |
|
M18×1.5 |
3-7 |
6 |
21 |
20 |
18 |
|
M20×1.5 |
6-12 |
6.5 |
22 |
22 |
20 |
|
M20×1.5 |
5-9 |
6.5 |
22 |
22 |
20 |
|
M20×1.5 |
10-14 |
6.5 |
23 |
24 |
20 |
|
M20×1.5 |
7-12 |
6.5 |
23 |
24 |
20 |
|
M22×1.5 |
10-14 |
6.5 |
23 |
24 |
22 |
|
M22×1.5 |
7-12 |
6.5 |
23 |
24 |
22 |
|
M25×1.5 |
13-18 |
7 |
25 |
30 |
25 |
|
M25×1.5 |
9-16 |
7 |
25 |
30 |
25 |
|
M32×1.5 |
18-25 |
8 |
29 |
40 |
32 |
|
M32×1.5 |
13-20 |
8 |
29 |
40 |
32 |
|
M40×1.5 |
22-32 |
8 |
35 |
50 |
40 |
|
M40×1.5 |
20-26 |
8 |
35 |
50 |
40 |
|
M50×1.5 |
32-38 |
9 |
37 |
57 |
50 |
|
M50×1.5 |
25-31 |
9 |
37 |
57 |
50 |
|
M63×1.5 |
37-44 |
10 |
38 |
68 |
63 |
|
M63×1.5 |
29-35 |
10 |
38 |
68 |
63 | |
