HB1700GC series fixed DC stabilized power supply
Features
·Stable voltage output, strong power
·Overload protection
·Double-display for voltage and current
·High reliability, continuous operation for a long time
·Applicable for kinds of bank bases, ships, etc.
Main technical indexes
Input voltage: 220V 10% or 110V 10%
Output voltage: DC3~50V (any fixed point)
Output current: DC0~10A (any fixed point)
Ripple voltage: 40mVrns
Volume & weight: 23 12 15cm 3~4Kg
HB1700GC series fixed DC stabilized power supply
Features
·Stable voltage output, strong power
·Overload protection
·Gauge outfit indicates output voltage or current;High reliability, continuous operation for a long time
·Applicable for kinds of bank bases, ships, etc.
Main technical indexes
Input voltage: 220V 10% or 110V 10%
Output voltage: DC3~50V (any fixed point)
Output current: DC15~20A (any fixed point)
Ripple voltage: 60mVrns
Volume & weight: 44 30 22cm 7~12Kg
HB1700GC series fixed DC stabilized power supply
Features
。Stable voltage output, strong power
。Overload protection
。Gauge outfit indicates output voltage or current;High reliability, continuous operation for a long time
。Applicable for kinds of bank bases, ships, etc.
Main technical indexes
Input voltage: 220V 10% or 110V 10%
Output voltage: DC3~50V (any fixed point)
Output current: DC30~50A (any fixed point)
Ripple voltage: 100mVrns
Volume & weight: 44 25 34cm 30~40Kg
HB17300SC1~5A series adjustable DC stabilized power supply
Features
·Single circuit output, high stability, high efficiency
·Double-display for voltage and current
·Auto transfer between voltage stabilization and current stabilization
·Short circuit protection, current-limiting protection, the current-limitingpoint can be adjusted randomly
·Output may be preset
·Frame of full plastic, novel and nice appearance
Main technical indexes
|
Model |
Output
voltage |
Output
current |
|
HB17300SC1A |
0~30V |
0~1A |
|
HB17300SC2A |
0~2A |
|
HB17300SC3A |
0~3A |
|
HB17300SC5A |
0~5A |
Power supply effect : CV 1 10-4 0.5mV
CC 2 10-3 1mA
Load effect : CV 1 10-4 2mV
CC 2 10-3+3mA
Ripple and noise : CV 1mVrms
CC 5mArms
Volume and weight : 23 12 15cm 3-4Kg

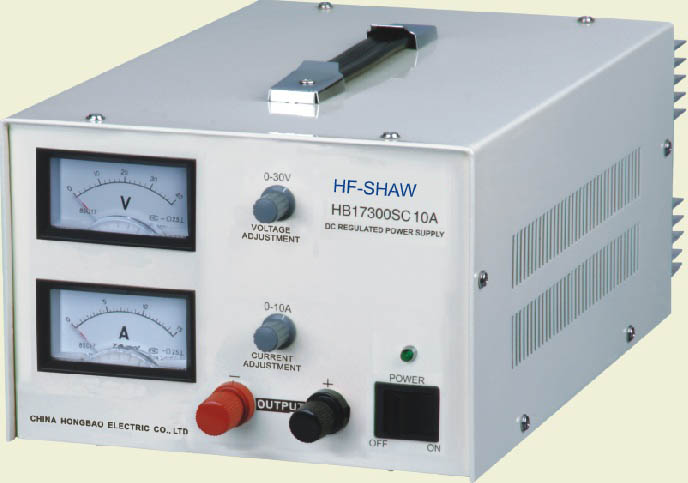

HB17300SC7~15A series adjustable DC stabilized power supply
Features
·Single circuit output, high stability, high efficiency
·High current output
·Double-display for voltage and current
·Auto transfer between voltage stabilization and current stabilization
·Short circuit protection, current-limiting protection, the current-limiting
point can be adjusted randomly
·Plastic-sprayed steel frame, novel and nice appearance
·According to users' requirements, the output of fixed voltage and low
current of one circuit can be customized.
Main technical indexes
|
Model |
Output
voltage |
Output
current |
Ripple and noise: CV≤3mVrmsCC |
|
HB17300SC7A |
0~30V |
0~7A |
CC≤10mArms |
|
HB17300SC10A |
0~10A |
Power supply effect : CV≤2 10-4+3mV |
|
HB17300SC15A |
0~15A |
CC≤2 10-3+3mA |
|
|
Load effect : CV≤2 X 10-4+10mV |
|
CC≤5 X 10-3+10mA |
|
Volume and weight : 38 X 22 X 17 cm |
|
11.5kg-15kg |
HB17300SC20~30A series high-power adjustable DC stabilized power supply
Features
·Single circuit output, high stability, high efficiency
·High current output
·Double-display for voltage and current
·Short circuit protection, current-limiting protection, the current-limitingpoint can be adjusted randomly
·Top plastic-sprayed steel panel
Main technical indexes
|
Output voltage : 0~30V continuously adjustable |
|
Output current :0~30A continuously adjustable |
|
Power supply effect :CV≤1 X 10-4＋5mV CC≤1 X 10-3＋15mA |
|
Load effect : CV≤1 X 10-4＋15mV CC≤1 X 10-3+30mA |
|
Ripple voltage : CV is less than 5mVrms CC is less than 20mArms |
|
Volume and weight : 44 X 25 X 34cm 30-38.2kg |
HB17300SL1~5A series adjustable DC stabilized power supply
Features
·Single circuit output, high stability, high efficiency
·Double-display for voltage and current
·Auto transfer between voltage stabilization and current stabilization
·Short circuit protection, current-limiting protection, the current-limitingpoint can be adjusted randomly
·Output may be preset
·Frame of full plastic, novel and nice appearance
Main technical indexes
|
Model |
Output
voltage |
Output
current |
|
|
HB17300SL1A |
0~30V |
0~1A |
Power supply effect : CV≤1 X 10-4+0.5mV CC≤2 X 10-3+1mA |
|
HB17300SL2A |
0~2A |
Load effect : CV≤1 X 10-4+2mV CC≤2 X 10-3+3mA |
|
HB17300SL3A |
0~3A |
Ripple and noise : CV≤1mVrms CC≤5mArms |
|
HB17300SL5A |
0~5A |
Volume and weight : 23 X 12 X 15cm 3-4Kg |
HB17300SL7~15A series adjustable DC stabilized power supply
Features
·Single circuit output, high stability, high efficiency
·High output current
·Double-digit display for voltage and current
·Auto transfer between voltage stabilization and current stabilization
·Short circuit protection, current-limiting protection, the current-limitingpoint can be adjusted randomly
·Plastic-sprayed steel frame, novel and nice appearance
·According to users' requirements, the output of fixed voltage and lowcurrent of one circuit can be customized.
Main technical indexes
|
Model |
Output
voltage |
Output
current |
Power supply effect : CV≤2 X 10-4+3mV CC≤2 X 10-3+3mA |
|
HB17300SL7A |
0~30V |
0~7A |
Load effect : CV≤2 X 10-4+10mV CC≤5 X 10-3+3mA |
|
HB17300SL10A |
0~10A |
Ripple and nois : CV≤3mVrms CC≤10mArms |
|
HB17300SL15A |
0~15A |
Volume and weight : 38 X 22 X 17 cm 11kg-15kg |
HB17300SL20~30A series high-power adjustable DC stabilized power supply
Features
·Single circuit output, high stability, high efficiency
·High current output
·Double-digit display for voltage and current
·Auto transfer between voltage stabilization and current stabilization
·Short circuit protection, current-limiting protection, the current-limitingpoint can be adjusted randomly
·Top plastic-sprayed steel panel
Main technical indexes
|
Output voltage : 0~30V continuously adjustable |
|
Output current :0~30A continuously adjustable |
|
Power supply effect :CV≤1 X 10-4+5mV CC≤1 X 10-3+15mA |
|
Load effect : CV≤1 X 10-4+15mV CC≤1 X 10-3+30mA |
|
Ripple voltage : CV is less than 5mVrms CC is less than 20mArms |
|
Volume and weight : 44 X 25 X 34cm 30-38.2kg |
HB17300SB1~5A series adjustable DC stabilized power supply
Features
·Single circuit output, high stability, high efficiency
·Double-display for voltage and current
·Auto transfer between voltage stabilization and current stabilization
·Short circuit protection, current-limiting protection, the current-limiting point can be adjusted randomly
·Output may be preset
·Frame of full plastic, novel and nice appearance
Main technical indexes
|
Model |
Output
voltage |
Output
current |
|
|
HB17300SB1A |
0~30V |
0~1A |
Power supply effect : CV≤1 X 10-4+0.5mV CC≤2 X 10-3+1mA |
|
HB17300SB2A |
0~2A |
Load effect : CV≤1 X 10-4+2mV CC≤2 X 10-3+3mA |
|
HB17300SB3A |
0~3A |
Ripple and noise : CV≤1mVrms CC≤5mArms |
|
HB17300SB5A |
0~5A |
Volume and weight : 23 X 12 X 15cm 3-4Kg |
HB17300SB7~15A series adjustable DC stabilized power supply
Features
·Single circuit output, high stability, high efficiency
·High current output
·Double LCD display for voltage and current
·Auto transfer between voltage stabilization and current stabilization
·Short circuit protection, current-limiting protection, the current-limitingpoint can be adjusted randomly
·Plastic-sprayed steel frame, novel and nice appearance
·According to users' requirements, the output of fixed voltage and low current of one circuit can be customized
Main technical indexes
|
Model |
Output
voltage |
Output
current |
Power supply effect : CV≤2 X 10-4+3mV CC≤2 X 10-3+3mA |
|
HB17300SB7A |
0~30V |
0~7A |
Load effect : CV≤2 X 10-3+10mV CC≤5 X 10-3+3mA |
|
HB17300SB10A |
0~10A |
Ripple and noise : CV≤3mVrms CC≤10mArms |
|
HB17300SB15A |
0~15A |
Volume and weight : 38 X 22 X 17 cm 11kg-15kg |
HB17300SB20~30A series high-power adjustable DC stabilized power supply
Features
·Single circuit output, high stability, high efficiency
·High output current
·Double LCD display for voltage and current
·Short circuit protection, current-limiting protection, the current-limiting point can be adjusted randomly
·Top plastic-sprayed steel panel
Main technical indexes
|
Output voltage : 0~30V continuously adjustable |
|
Output current : 0~30A continuously adjustable |
|
Power supply effect : CV≤1 X 10-4+5mV CC≤1 X 10-3+15mA |
|
Load effect : CV≤1 X 10-4+15mV CC≤1 X 10-3+30mA |
|
Ripple voltage : CV is less than 5mVrms CC is less than 20mArms |
|
Volume and weight : 44 X 25 X 34cm 30-38.2kg |
HB17301SC1~5A series adjustable DC stabilized power supply
Features
·Four pointers indicate voltage and current at the same time.
·Can add fixed 5V2A power supply
·Auto transfer between voltage stabilization and current stabilization
·Output voltage of double circuits can be used in series or in parallel, also can be used for tracing of master and slave circuits , besides , it also can used as adjustable and symmetrical positive and negative power supply.
·Short circuit protection, current-limiting protection, the current-limiting point can be adjusted randomly
·Output may be preset
·Frame of full plastic, novel and nice appearance
Main technical indexes
|
Model |
Output voltage |
Output voltage |
|
|
HB17301SC1A |
0~30V |
0~1A |
Power supply effect : CV≤1 X 10-3+5mV CC≤1 X 10-2+1mArms |
|
HB17301SC2A |
0~2A |
Load effect : CV≤1 X 10-3+15mVrms CC≤1 X 10-2+31mArms |
|
HB17301SC3A |
0~3A |
Ripple and noise : CV≤5mVrms CC≤20mArms |
|
HB17301SC5A |
0~5A |
Volume and weight : 30 X 24 X 15cm 5.6-8kg |
HB17301SL1~5A series adjustable DC stabilized power supply
Features
·Four groups of digits indicate voltage and current at the same time.
·Can add fixed 5V2A power supply
·Auto transfer between voltage stabilization and current stabilization
·Output voltage of double circuits can be used in series or in parallel , also can be used for tracing of master and slave circuits, besides, it also can used as adjustable and symmetrical positive and negative power supply
·Short circuit protection, current-limiting protection, the current-limiting point can be adjusted randomly
·Output may be preset
·Frame of full plastic, novel and nice appearance
Main technical indexes
|
Model |
Output
voltage |
Output
current |
|
HB17301SL1A |
0~30V |
0~1A |
Power supply effect : CV≤1 X 10-3+5mV CC≤1 X 10-2+1mArms |
|
HB17301SL2A |
|
0~2A |
Load effect : CV≤1 X 10-3+15mVrms CC≤1 X 10-2+30mArms |
|
HB17301SL3A |
|
0~3A |
Ripple and noise : CV≤5mVrms CC≤20mArms |
|
HB17301SL5A |
|
0~5A |
Volume and weight : 30 X 24 X 15cm 5.6-8kg |
HB17301SB1~5A series adjustable DC stabilized power supply
Features
·Four LCD screens indicate voltage and current at the same time.
·Can add fixed 5V2A power supply
·Auto transfer between voltage stabilization and current stabilization
·Output voltage of double circuits can be used in series or in parallel , also can be used for tracing of master and slave circuits, besides, it also can used as adjustable and symmetrical positive and negative power supply.
·Short circuit protection, current-limiting protection, the current-limiting point can be adjusted randomly
·Output may be preset
·Frame of full plastic, novel and nice appearance
Main technical indexes
|
Model |
Output
voltage |
Output
current |
|
|
HB17301SB1A |
0~30V |
0~1A |
Power supply effect : CV≤1 X 10-3+5mV CC≤1 X 10-2+1mArms |
|
HB17301SB2A |
0~2A |
Load effect : CV≤1 X 10-3+15mVrms CC≤1 X 10-2+30mArms |
|
HB17301SB3A |
0~3A |
Ripple and noise : CV≤5mVrms CC≤20mArms |
|
HB17301SB5A |
0~5A |
Volume and weight : 30 X 24 X 15cm 5.6-8kg |
HB17301 SL7~10A series adjustable DC stabilized power supply
Features
·Four light-emitting diodes (LED) indicate output voltage and current of double circuits respectively.
·Auto transfer between voltage stabilization and current stabilization
·Output voltage of double circuits can be used in series or in parallel, also can be used for tracing of master and slave circuits , besides , it also can used as adjustable and symmetrical positive and negative power supply.
·Short circuit protection, current-limiting protection, the current-limiting point can be adjusted randomly
·Plastic-sprayed steel enclosure and panel, novel and nice appearance
Main technical indexes
|
Model |
Output
voltage |
Output
current |
Power supply effect : CV≤2 X 10-4+3mV CC≤2 X 10-3+3mA |
|
HB17301SL7A |
0~30V |
0~7A |
Load effect : CV≤2 X 10-4+10mV CC≤5 X 10-3+3mA |
|
HB17301SL10A |
|
0~10A |
Ripple and noise : CV≤3mVrms CC≤10mArms |
|
|
|
|
Volume and weight : 44 X 30 X 22cm 10.5-18kg |
HB17600~2000SC1~3A series DC stabilized power supply for high voltage output
Features
·Single circuit output, high stability, high efficiency
·High voltage output
·Double-display for voltage and current (pointer, quantity, LCD)
·Short circuit protection, current-limiting protection, the current-limiting point can be adjusted randomly
·Plastic-sprayed steel panel
Main technical indexes
|
Output voltage : 0~200V continuously adjustable |
|
Output current : 0~3A continuously adjustable |
|
Power supply effect : CV≤1 X 10-4+5mV CC≤1 X 10-3+15mA |
|
Load effect : CV≤1 X 10-4+15mV CC≤1 X 10-3+30mA |
|
Ripple voltage : CV≤5mVrms CC≤20mArms |
|
Volume and weight : 44 X 30 X 22cm 10~21kg |
HB17301SB series superpower DC stabilized power supply for single circuit output
Features
·Single circuit output
·Output high voltage and current
·Double-display for voltage and current (pointer, quantity, LCD)
·Short circuit protection, current-limiting protection, the current-limiting point can be adjusted randomly
·Plastic-sprayed steel panel
Main technical indexes
|
Output voltage : 0~30V continuously adjustable |
|
Output current : 40~100A continuously adjustable |
|
Power supply effect : CV≤5 X 10-4 CC≤5 X10-3 |
|
Load effect : CV≤1 X 10-3 CC≤1 X 10-2 |
|
Ripple voltage : CV≤5mVrms CC≤20mArms |

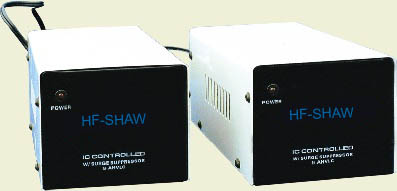

DRP series fixed DC power supply

Features
·Output by wiring card or cigarette lighter, convenience for connection. Applicable for auto electrical appliance.
·Stable voltage output, strong power
·High reliability, continuous operation for a long time
·Applicable for DC equipments used in kinds of bank bases, cars, ships, etc.
Main technical indexes
|
Model |
Output
voltage |
Output
current |
Model |
Output
voltage |
Output
current |
|
DRP-13.8/1A |
13.8V
(Plug of
cigarette lighter ) |
1A |
DRP-24/1A |
24V |
1A |
|
DRP-13.8/2A |
2A |
DRP-24/15A |
1.5A |
|
DRP-13.8/3A |
3A |
Ripple and noise : 25mVrms(13.8V) |
|
DRP-12/1A |
(Wiring card )
12V |
1A |
24mVrms |
|
DRP-12/2A |
2A |
Volume and weight : 50 X 35 X 25cm |
|
DRP-12/3A |
3A |
1-2Kg |

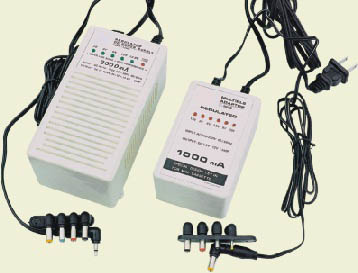

3V, 6V, 9V, 12V, 15V, 24V fixed DC power supply
Features
With varieties of output plugs, it is applicable for electronic organ, radiorecorder, computer external device, active acoustic enclosure and so on.
Main technical indexes
·Input voltage: 220V or 110±10%
·Output voltage: any fixed point voltage in the range of 24V.
·Output current: less than DC 1.5A
·Ripple voltage: ≤20mVrms

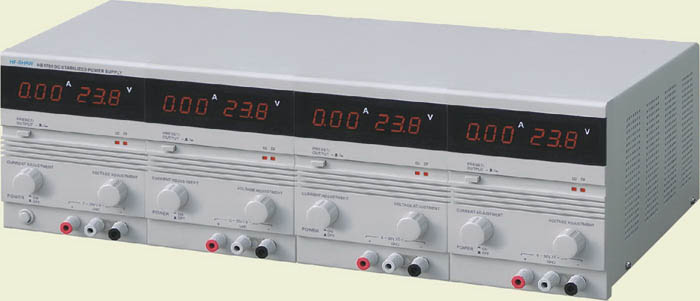

Combination of multi outputs
We can design DC stabilized voltage and stabilized current power supply of special specifications according to users' requirements |
