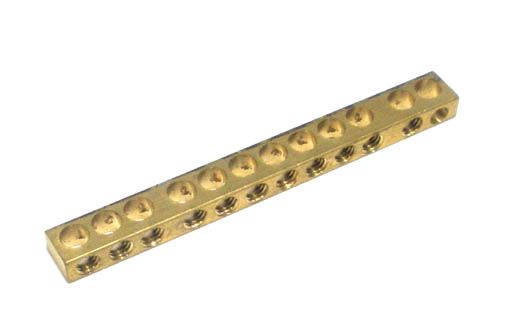

Brass Connector
Material
● Brass, screw is Iron plated zinc
● Remark: We could produce according to customer's drawing and required sizes.
|
Item no. |
Spec. |
Length |
Item no. |
Spec. |
Length |
ø |
Screw Size |
|
w×h-hole |
(mm) |
w×h-hole |
(mm) |
(mm) |
(mm) |
|
Setting hole in middle |
|
|
Setting hole in beside |
|
|
|
|
|
SP038-01 |
6×9-4/1 |
33.0 |
SP038-14 |
6×9-4/2 |
37.0 |
4.3 |
M4.0×7 |
|
SP038-02 |
6×9-6/1 |
45.4 |
SP038-15 |
6×9-6/2 |
49.0 |
|
SP038-03 |
6×9-7/1 |
51.6 |
SP038-16 |
6×9-8/2 |
64.0 |
|
SP038-04 |
6×9-8/1 |
57.8 |
SP038-17 |
6×9-9/2 |
70.2 |
|
SP038-05 |
6×9-9/1 |
64.0 |
SP038-18 |
6×9-10/1 |
76.4 |
|
SP038-06 |
6×9-10/1 |
70.2 |
SP038-19 |
6×9-12/1 |
88.8 |
|
SP038-07 |
6×9-12/1 |
82.6 |
SP038-20 |
6×9-14/2 |
101.2 |
|
SP038-08 |
6×9-14/1 |
95.0 |
SP038-21 |
6×9-16/2 |
113.6 |
|
SP038-09 |
6×9-16/1 |
107.4 |
SP038-22 |
6×9-18/2 |
126.0 |
|
SP038-10 |
6×9-18/1 |
119.8 |
SP038-23 |
6×9-20/2 |
138.4 |
|
SP038-11 |
6×9-20/1 |
132.2 |
SP038-24 |
6×9-22/2 |
150.8 |
|
SP038-12 |
6×9-22/1 |
144.6 |
SP038-25 |
6×9-24/2 |
163.2 |
|
SP038-13 |
6×9-24/1 |
157.0 |
|
|
| |
