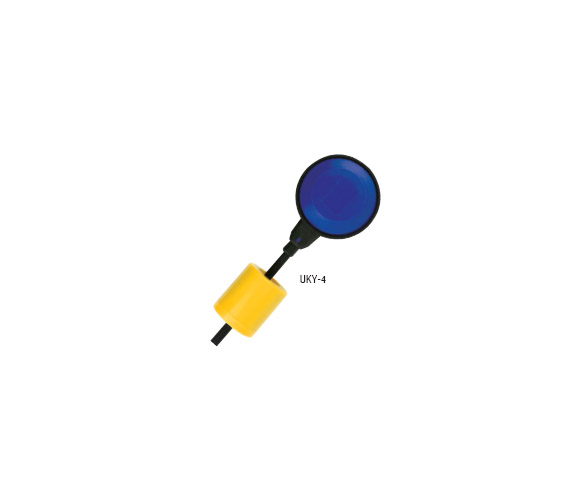

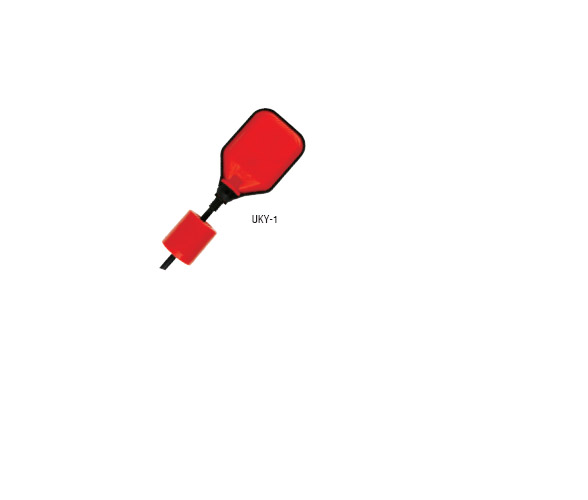

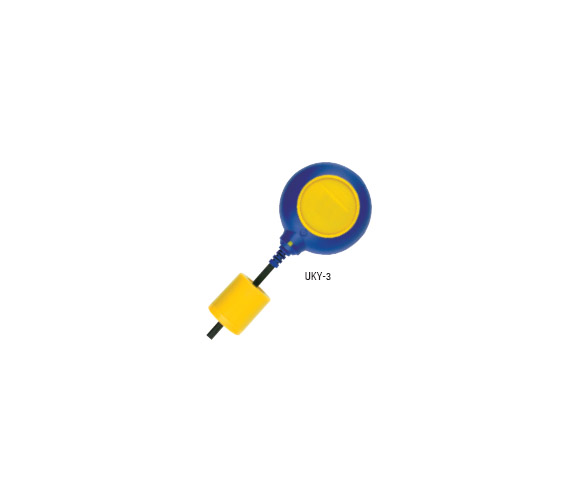

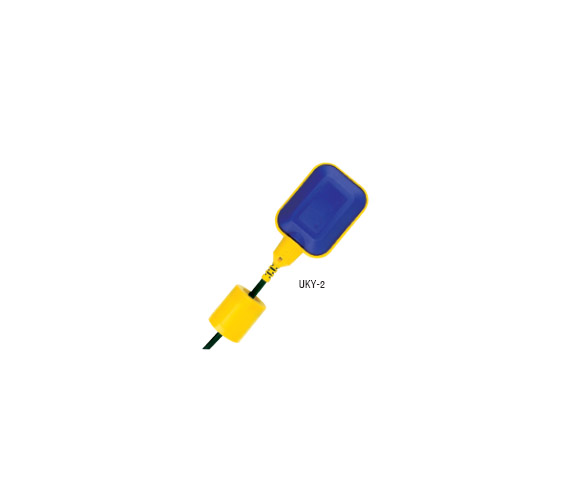

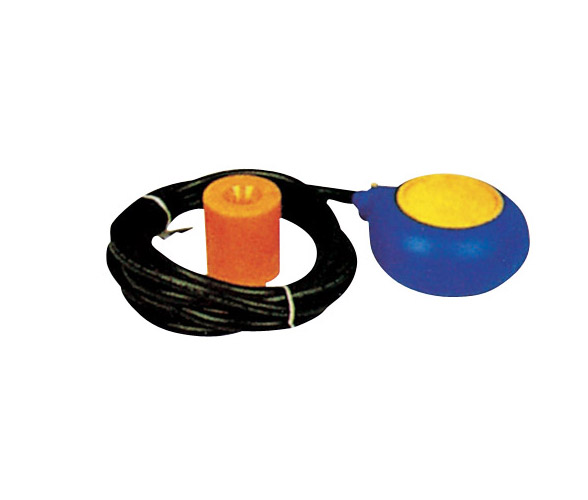

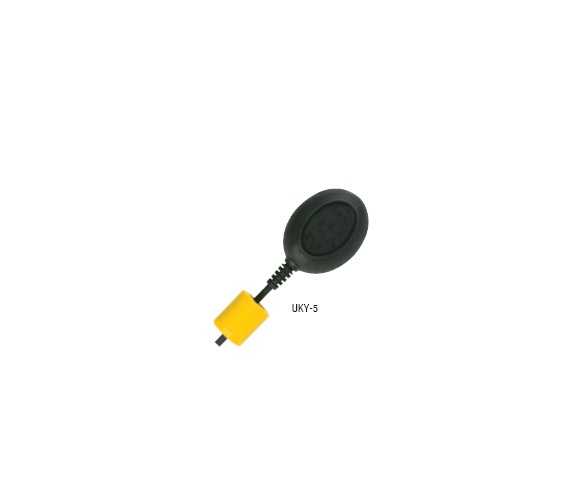

UKY series float switch,fluid level controller
UPTIME : 2010-8-3 10:35:29 / CLICKS :1581


PERFORMANCE AND CHARACTERISTICS

Simple construction, reliable performance
The product can output stable and reliable switch control signal of "making", "breaking" without any fault action, so its reliability is very high and anti-interference is strong.
Sturdy and durable, need not maintain
The product can be used for a long time after it being installed. Almost no maintenance and repairing problem would occur during its operation period
Easy installation method, convenient adjustment method
The liquid level control scope can be adjusted at will with the locating piece moving up and down. Only one screw is needed to secure the signal cable to finish installation.
Wide application scope, strong generality
The product applies to branch water, sewage, acid-base solution of less than medium concentration,
oils and situations requiring no pollution(for example food and drinks industry),diesel oil gasification kitchen range, and automatic fuel feeding.
Simple circuit, economical and practical
Operation voltage is 220V, and current can be up to 10A,The applied circuit of the product is simple,so application cost is very low.



INSTRUCTIONS FOR INSTALLATION

May be used for direct level contorl. in accordance with product electrical specifications.
In the case of approved products, the ground wire will always be included and the groung wire sheath will always be yellow/green.
In this case, this two remaining wires are supplied for "high closure"or,specific request,"low closure"

ELECTRICAL CONNECTIONS

Use wires:                                                                       Use wires:
"Black" and "Blue"                                                          "Black" and "Blue"
With these contacts the regulator                                   With these contacts theregulator
Closes when down                                                          Closes when. up
Open when. up                                                               Opens when.down.
The wire that is not used must
 be correctly insulated

TECHNICAL DATES

Microswitch:                      10(8)A 250V~10(4)A 380V
Switch currency:
                                          ≥ 50 000 switch workings tested by
                                          VDE specialisation
Protective connection:       T70U
Protection:                          waterproof
Max.temperature:                70℃
Working pressure:               max.1bar
Circuit breaking capacity:   directly 1KW with 250V
