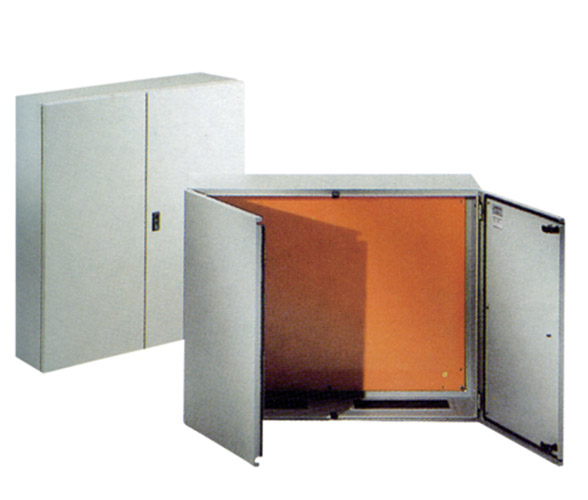

CONSTRUCTION
Body and doors manufactured in 1.5mm sheet steel.
Mounting plate with folded edge in 2.5mm sheet steel.
FINISH
T & J standard cycle thermosetting epoxypolyester powder coating.
Body and doors RAL 7032 textured finish.
Mounting plate in RAL 2004 smooth finish.
PROTECTION DEGREE
IP 55 to EN60 529 NEMA 12.
PACKING
Boxes are complete with:
4 zincpassivated rails to be fixed on the door.
Mounting plate.
2 gland platesand gasket.
Package with hardware for earth connection and screws to mount all components.
Locking system with 3mm double bar key.
