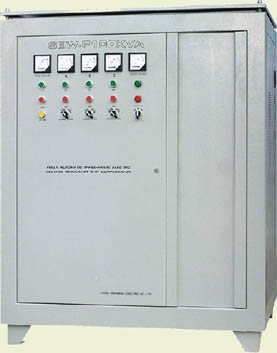

SBW-F series three-phase split-phase regulating full-automatic compensated voltage stabilizer
UPTIME : 2010-8-24 9:21:58 / CLICKS :5327

20-60KVA control board

1.Control
2.Power-off
3.Power-off
4.Sampling
5.Work
6.Power-off
7.Output
8.Step-up,
9.Panel


80-120KVA control board
1.Control
2.Power-off
3.Work
4.Sampling
5.Power-off
6.Power-off
7.Output
8.Step-up,
9.Panel


Control board of above 150KVA (include 150KVA)
1.Control
2.Power-off
3.Phasesequence
4.Work
5.Sampling
6.Power-off
7.Power-off
8.Output
9.Step-up
10.Step-down
11.Over-voltage
12.Step-down
13.Step-up
14.Panel
Model & spec.
Model
Rated capability
(KVA)
Output max current
(A)
Size (mm)
D X W X H
Cabinet
QTY
Weight
(kg)
SBW-F-20
20
30
680 X 1100 X 1320
One
480
SBW-F-30
30
45
680 X 1100 X 1320
500
SBW-F-50
50
76
680 X 1100 X 1320
652
SBW-F-100
100
152
800 X 1100 X 1420
847
SBW-F-150
150
227
1000 X 1350 X 1650
1360
SBW-F-180
180
273
1000 X 1350 X 1650
1380
SBW-F-200
200
303
1000 X 1350 X 1650
1410
SBW-F-225
225
341
1000 X 1350 X 1650
1470
SBW-F-250
250
379
1000 X 1350 X 1650
1490
SBW-F-300
300
455
1000 X 1350 X 1650
1700
SBW-F-400
400
606
1000 X 1350 X 1650
1760
