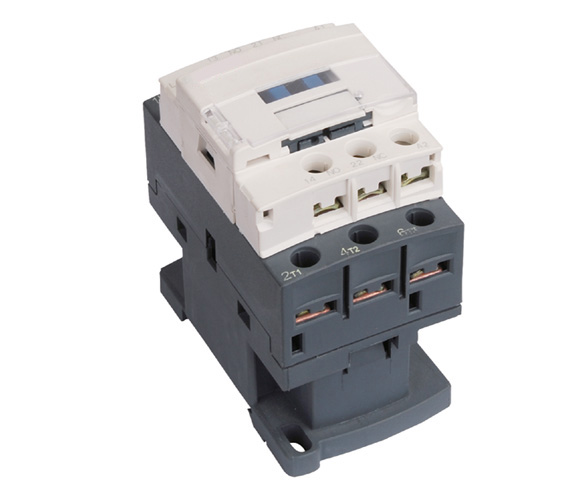

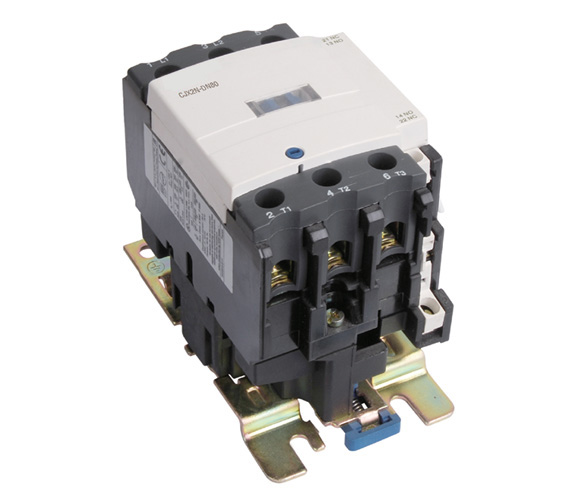

CJX2N series ac contactor
UPTIME : 2010/7/21 15:40:45 / CLICKS :11830

APPLICATION

CJX2-N series AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical-interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to IEC 947-2, VDE 0660 & BS5452.

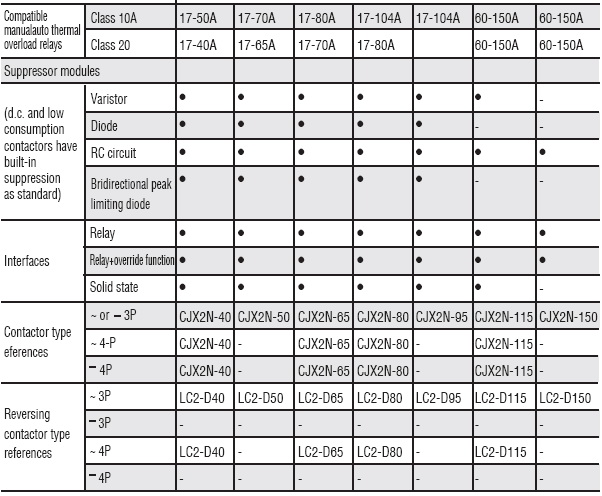

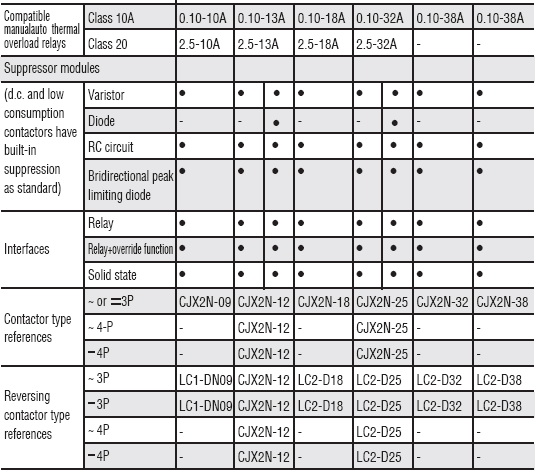

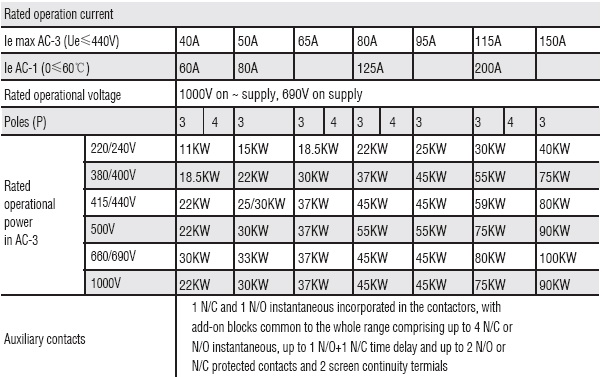

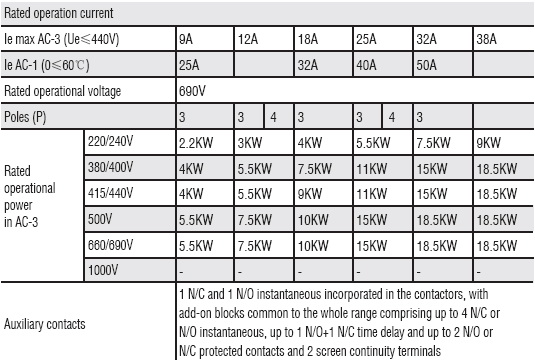

SPECIFICATIONS

CLOSE
Add: Qianxiyang Industry Zone, Liushi, Yueqing, Zhejiang, 325604 China
Tel: 86-577-62627391 Fax: 86-577-62627397 Mobile: 86-13758426411
