M Cable Gland
material：nylon plastic
hermetic seal：nitrile rubber（NBR）
protection degree：IP68-5 pressure（rotate position，with O-seal）
ambient temperature：quiescent state -40oC to 100oC，short time 120oC dynamic
-20oC to 80oC,short time to 100oC
supply color：Grey black other color，please inquring.
IP68 dust-proof、water proof testing qualified
|

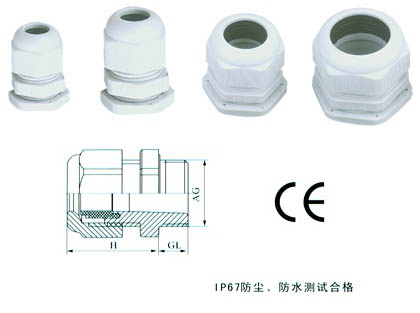

AG(PG) |
 (mm) |
GL(mm) |
H(mm) |
 (mm) |
|
M12×1.5 |
3-6.5 |
15 |
22 |
16 |
|
M12×1.5 |
2-5 |
15 |
22 |
16 |
|
M16×1.5 |
4-8 |
15 |
26 |
19 |
|
M16×1.5 |
2-6 |
15 |
26 |
19 |
|
M18×1.5 |
5-10 |
15 |
27 |
22 |
|
M18×1.5 |
3-7 |
15 |
27 |
22 |
|
M20×1.5 |
6-12 |
15 |
28 |
24 |
|
M20×1.5 |
5-9 |
15 |
28 |
24 |
|
M20×1.5 |
10-14 |
15 |
30 |
27 |
|
M20×1.5 |
7-12 |
15 |
30 |
27 |
|
M22×1.5 |
10-14 |
15 |
30 |
27 |
|
M22×1.5 |
7-12 |
15 |
30 |
27 |
|
M25×1.5 |
13-18 |
15 |
36 |
33 |
|
M25×1.5 |
9-16 |
15 |
36 |
33 |
|
M32×1.5 |
18-25 |
15 |
40 |
41 |
|
M32×1.5 |
13-20 |
15 |
40 |
41 |
|
M40×1.5 |
22-32 |
18 |
48 |
52/53 |
|
M40×1.5 |
20-26 |
18 |
48 |
52/53 |
|
M50×1.5 |
32-38 |
18 |
49 |
60/61 |
|
M50×1.5 |
25-31 |
18 |
49 |
60/61 |
|
M63×1.5 |
37-44 |
18 |
50 |
65/67 |
|
M63×1.5 |
29-35 |
18 |
50 |
65/67 | |
