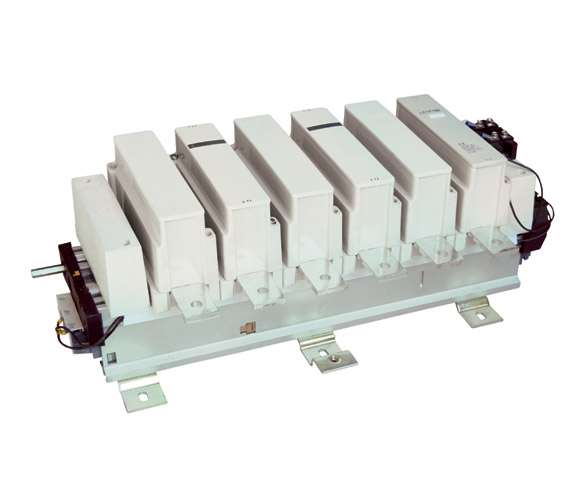

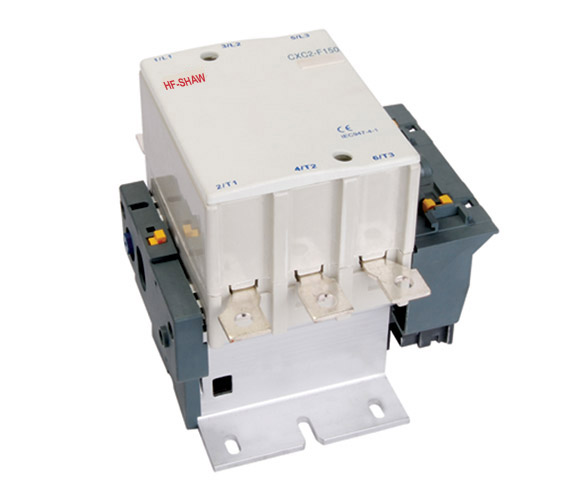

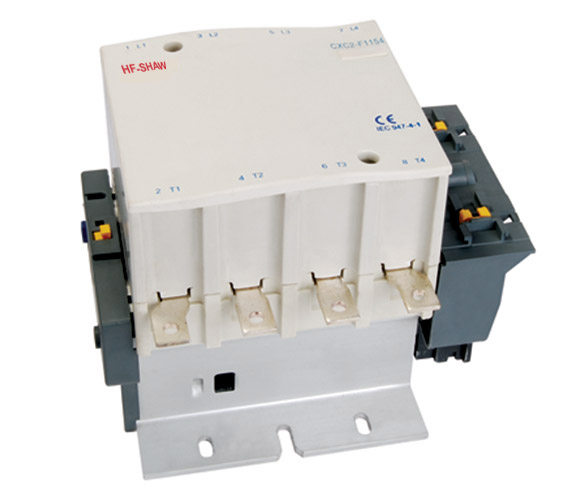

LC1-F series ac contactor
UPTIME : 2010/7/22 8:47:04 / CLICKS :11155

APPLICATION

LC1-F series AC contactor is applicable to the circuits up to the rated voltage 1000V AC 50Hz or 60Hz, rated current up to 780A, for long distance breaking circuit and frequently starting or control the motor. It also can be used for the control of distribution circuits of rated current from 220A to 1600A.

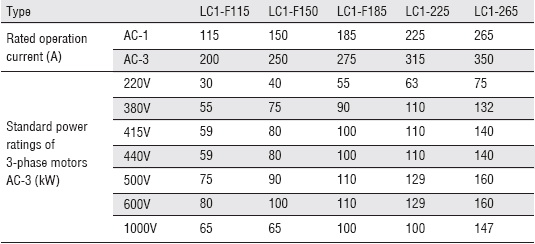

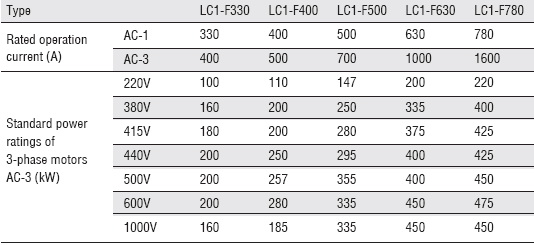

SPECIFICATION

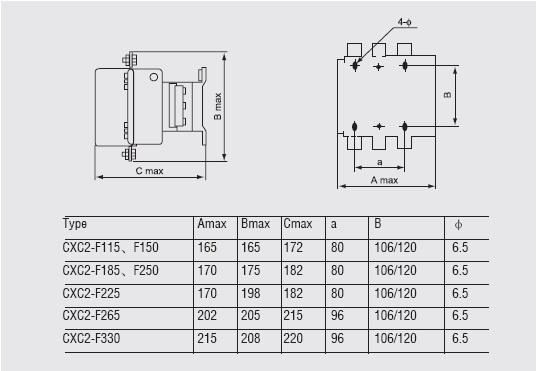

DIMENSION(mm)
