Summarize

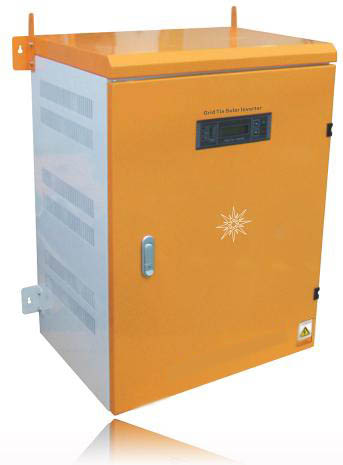

The grid connected inverter can be used with a connection to grid or power lines. This type supplies the loading appliances with electric power produced by photovoltaic systems.
The advantage of grid-type is not to worry any power waste, because by connecting inverter to grid, it can save any surplus electricity.
Features
＊Wide DC input voltage range
＊DSP controller
＊High efficiency by using advanced IGBT and IPM
＊MPPT(Maximum power point tracking) technology
＊Transformer less, High efficiency
＊In accordance with international standards
＊Quick and easy installation
＊Operation parameters can be adjusted via LCD and keys
＊The perfect protection function
＊Designed to suitable for critical grid environment
Technical Data
|
Model |
TLS-ZB 9000W |
|
DC Input |
MPPT Voltage Range |
DC100 ～ 500V |
|
Rated DC Voltage |
360V |
|
Control System |
MPPT |
|
AC Output |
Output Power |
9000W |
|
Rate voltage |
AC220 |
|
Voltage range |
AC 185V ～ 264V (1 phase) |
|
Normal Grid Frequency |
50/60Hz（Grid frequency） |
|
Phases |
1 phase 2 wire |
|
Power Factor |
＞ 0.95 |
|
Current THD |
At rated power and in the sine wave <5% |
|
Control System |
PWM |
|
Anti-islanding |
≤0.5 sec |
|
Total Max.Current |
40.2A |
|
Max. Efficiency |
97% |
|
Euro Efficiency |
96.4% |
|
Structure |
Protection Class |
IP20 |
|
Cooling System |
Natural cooling |
|
Noise |
＜ 50dB |
|
Data Interfaces |
External RS232C/RS485 |
|
Web Module( Option) |
RS232C to TCP/IP |
|
Display |
LCD |
|
Packing Dimensions
(W*H*D) |
700*460*840mm |
|
Net weight |
63 kgs |
|
Gross weight |
68kgs |
|
Protection |
Inverter |
Input over voltage, output short circuit, overheat, output DC component. |
|
Grid |
Anti-islanding, over/under voltage of grid, over/under
frequency of grid. |
|
Environment |
Environment |
No corrosion gas, flammable gas, oil mist, dust etc. |
|
Operation temperature |
-10 ℃ ~40 ℃ （ 50 ℃ ） |
|
Stored temperature |
-20 ℃ ～ 65 ℃ |
|
Relative humidity |
0~100% (Do not wet with dew) |
