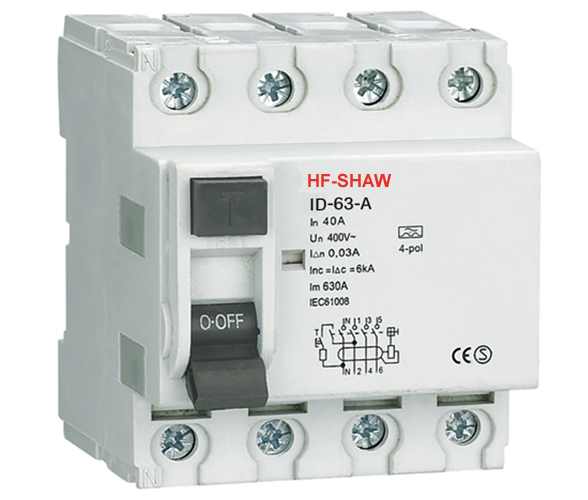

Products Name: ID Series A Tpye Residual Current Circuit Breaker
Application

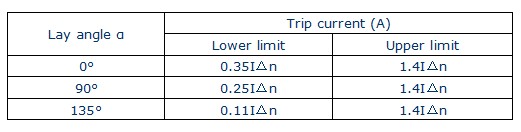

ID series(AItennating current and pulsating direct current: A type)of residual current circuit breakers are mainly used in the electric distribution systen AC 230/ 415V or less with rated current from 10A to 100A,It is found wide use to protect residential, functional, industrial buildings and hotel etc. Against earth leakage, insulation fault and fire accident caused by direct or indirect contact with electric parts(including human or other animal getting a electric shock).It will trip free under reated value, or current delay angle of 0°,90°,135°residual pulsating direct current, or pile pulsating direct current up to 0.006A direct current. It is compatible with normal RCCB. Series A type of RCCBs are in accordance with IEC61008 standard.
Note: half-ware D.C or A.C, can trip freely, under rated current, independent of voltage.

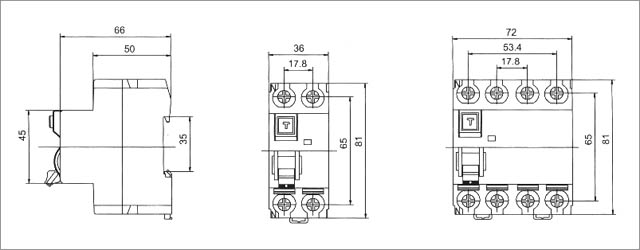

Dimension and Mounting
|
